SidewalkWithBase

This subassembly inserts links for a sidewalk with options for inside and outside terrace and attachments options.

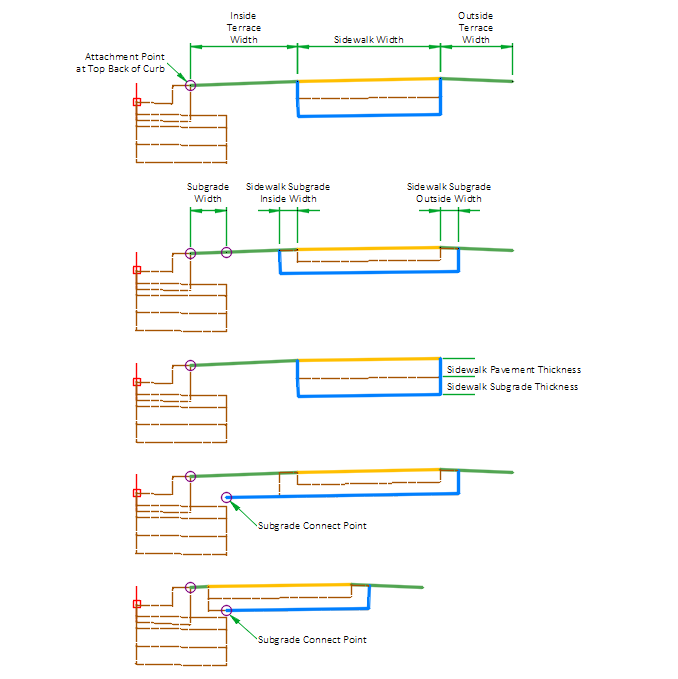

The inside terrace, sidewalk, and outside terrace links are inserted outward from the attachment point at the user defined widths and slopes. The terraces can be omitted by specifying a zero-width. The sidewalk may not have a zero width and will default to a width of 5ft if the Sidewalk With parameter is set to zero. The sidewalk width can not defined as a zero width when using a target to define the sidewalk width.

Starting at the outer point of the inside terrace, a finished sidewalk surface and subsequent base course surfaces are inserted using user defined width, depth and slope. Vertical links close the shape at either end of the sidewalk.

Optionally, each element's width can be attained by using an offset target.

Each inside terrace cross slope link, sidewalk cross slope link, and the outside terrace cross slope link can use a profile target to define the elevation of the out point of the link, assign a Superelevation parameter to define the cross slope, or can target a profile to use the elevation invert to define the slope.

The Subgrade may be extended beyond the width of the sidewalk pavement on both the inside and or the outside using the Sidewalk Subgrade Inside Width or Sidewalk Subgrade Outside Width Input parameters.

The SidewalkWithBase assembly provides the option to assign from other subassembly output or manually input the Width of Datum Subgrade from connected inside subassembly as a coded ETW_Datum_CG point. To turn off this point option set this parameter to zero. The Place Datum Connect on Sidewalk Subgrade provides a user the option to force the vertical location of this point. This parameter is a yes or no option. Setting this to No keeps the point placed on the top link. The Yes option will create a point where the sidewalk subgrade extended inwards meets the subgrade datum width and create a connecting link from this point to the sidewalk subgrade link when possible. If no subgrade is defined it will place the point on the top link. If the inside terrace slope is such that the sidewalk subgrade intersects the terrace link before reaching the subgrade datum width then no subgrade link is created and a point is created at the daylight point and the top link point at the subgrade datum width is created.

The attachment point is at the inside edge of the inside terrace. If the inside terrace width is set to zero the attachment point becomes the inside edge of the sidewalk. The SidewalkWithBase subassembly is typically attached to a top back-of-curb, curb terrace, or edge of pavement.

In layout mode, this subassembly displays the terraces and sidewalk based on the input parameter values given. Point P1 is not coded (set as "no code") because it will be coincidental to an attached subassembly with a coded point. All points, links and shapes have a user input parameter and may be coded by the user.

Info: All dimensions are in feet unless otherwise noted. All slopes are indicated as a percent slope with a "%" sign.

Parameter	Description	Type	Default
Side	Specifies to insert the subassembly either on the right or the left side of the attachment point.	Left/Right	Right
Inside Terrace Width	Width of the inside terrace.	Numeric, positive	6.0
Inside Terrace Superelevation	Option to use Superelevation for Inside Terrace Slope override.	Superelevation	None
Sidewalk Width	Width of the sidewalk or pathway.	Numeric, positive, non-zero	1.5 m 5.0 ft
Sidewalk Superelevation	Option to use Superelevation for Sidewalk Slope override.	Superelevation	None
Outside Terrace Width	Width of the outside terrace.	Numeric, positive	1.0
Outside Terrace Superelevation	Option to use Superelevation for Outside Terrace Slope override.	Superelevation	None
Inside Sidewalk Subgrade Width	Width of subgrade extended inside of sidewalk.	Numeric, positive	0.0
Outside Sidewalk Subgrade Width	Width of subgrade extended outside of sidewalk.	Numeric, positive	0.0
Sidewalk Pavement Depth	Depth of pavement for the sidewalk.	Numeric, positive	0.100 m 0.333 ft.
Sidewalk Subgrade Depth	Depth of subgrade for the sidewalk or pathway.	Numeric, positive	0.100 m 0.333 ft.
Inside Terrace Slope	% slope of the inside terrace. Positive slopes are upwards from attachment point.	Numeric	4 (%)
Sidewalk Pavement Slope	% slope of the sidewalk. Positive slopes are upwards from the attachment point.	Numeric	1.5 (%)
Outside Terrace Slope	% slope of the outside terrace. Positive slopes are upwards from the attachment point.	Numeric	-4 (%)
Width of Datum Subgrade from connected inside subassembly	Width of curb subgrade extended beyond back of curb or sidewalk insertion point.	Numeric, positive	0.0
Place Datum Connect on Sidewalk Subgrade [P11]	Places the ETW_Datum_CG connect point on the base or subgrade [P11]	Yes / No	No
[P1] Attachment Point	User editable point code at attachment.	String	no code
[P2] Inside sidewalk on finish grade	User editable point code at inside sidewalk on finish grade.	String	Sidewalk_In_Top, Sidewalk_In_Datum
[P3] Outside sidewalk on finish grade	User editable point code at outside sidewalk on finish grade.	String	Sidewalk_Out_Top, Sidewalk_Out_Datum
[P4] Outside Terrace on finish grade	User editable point code at outside terrace on finish grade.	String	P4
[P5] Inside sidewalk edge	User editable point code at inside sidewalk edge - base.	String	ISE_Base
[P6] Outside sidewalk edge	User editable point code at outside sidewalk edge - base.	String	OSE_Base
[P7] Inside sidewalk edge	User editable point code at Inside sidewalk edge - datum.	String	ISE_Datum
[P8] Outside sidewalk edge	User editable point code at outside sidewalk edge - datum	String	OSE_Datum
[P9] Subgrade inside terrace	User editable point code at Subgrade inside terrace - datum	String	Datum
[P10] Subgrade outside terrace	User editable point code at Subgrade outside terrace - datum	String	Datum
[P11] Subgrade connect point	User editable point code for optional connect point based on CG Subgrade Width - datum	String	ETW_Datum_CG
[P12] Sidewalk subgrade inside terrace daylight	User editable point code to daylight sidewalk subgrade on steep inside terrace slope	String	Uncoded
[L1] Inside Terrace top	User editable Link code at top inside terrace	String	Top, Datum
[L2] Sidewalk top	User editable Link code at top of sidewalk pavement	String	Top, Sidewalk
[L3] Outside Terrace top	User editable Link code at top outside terrace	String	Top, Datum
[L4] Top of base	User editable Link code at inside depth of sidewalk pavement	String	Base
[L5] Top of base	User editable Link code at bottom of sidewalk pavement	String	Base
[L6] Top of base	User editable Link code at outside depth of sidewalk pavement	String	Base
[L7] Bottom of base	User editable Link code at inside depth of subgrade	String	Datum
[L8] Bottom of base	User editable Link code at bottom of subgrade	String	Datum
[L9] Bottom of base	User editable Link code at outside depth of subgrade	String	Datum
[L10] Inside shoulder top	User editable Link code at top of subgrade inside of sidewalk	String	Datum
[L11] Outside shoulder top	User editable Link code at top of subgrade outside of sidewalk	String	Datum
[L12] Bottom of base	User editable Link code at bottom of subgrade inside sidewalk	String	Datum
[L13] Bottom of base	User editable Link code at bottom of subgrade outside of sidewalk	String	Datum
[L14] Subgrade datum link to sidewalk subgrade	User editable Link code to connect inside subgrade to sidewalk subgrade	String	Datum
[S1] Sidewalk pavement Shape	User editable Shape code of sidewalk pavement	String	Pave1

This section lists the parameters in this subassembly that can be mapped to one or more target objects, such as a surface, alignment, or profile object in a drawing. For more information, see in the AutoCAD Civil 3D User's Guide Help.

Parameter	Description	Status
Inside Terrace Width	Object that defines the width of the inside terrace. The following object types can be used as targets for specifying this width: alignments, polylines, feature lines, or survey figures.	Optional
Sidewalk Width	Object that defines the width of the sidewalk. The following object types can be used as targets for specifying this width: alignments, polylines, feature lines, or survey figures.	Optional
Outside Terrace Width	Object that defines the width of the outside terrace. The following object types can be used as targets for specifying this width: alignments, polylines, feature lines, or survey figures.	Optional
Inside Sidewalk Elevation	Object that defines the elevation of the inside sidewalk elevation. The following object types can be used as targets for specifying this width: profiles, 3D polylines, feature lines, or survey figures.	Optional
Inside Terrace Slope From Profile	A profile that defines the inside terrace slope. A slope control profile that has the PVI elevations defined as the invert slope is required.	Optional
Outside Sidewalk Elevation	Object that defines the elevation of the outside sidewalk elevation. The following object types can be used as targets for specifying this width: profiles, 3D polylines, feature lines, or survey figures.	Optional
Sidewalk Slope From Profile	A profile that defines the sidewalk slope. A slope control profile that has the PVI elevations defined as the invert slope is required.	Optional
Outside Terrace Elevation	Object that defines the elevation of the outside sidewalk elevation. The following object types can be used as targets for specifying this width: profiles, 3D polylines, feature lines, or survey figures.	Optional
Outside Terrace Slope From Profile	A profile that defines the outside terrace slope. A slope control profile that has the PVI elevations defined as the invert slope is required.	Optional
Datum Point For Subgrade	Object that defines the width of subgrade point. The following object types can be used as targets for specifying this width: alignments, polylines, feature lines, or survey figures.	Optional
Inside Subgrade Width	Object that defines the width of the inside subgrade width. The following object types can be used as targets for specifying this width: alignments, polylines, feature lines, or survey figures.	Optional
Outside Subgrade Width	Object that defines the width of the outside subgrade width. The following object types can be used as targets for specifying this width: alignments, polylines, feature lines, or survey figures.	Optional

Parameter	Description	Type
Inside Terrace Width	Width of inside terrace	Numeric (ft)
Inside Terrace % Slope	% slope of the inside terrace. Positive slopes are upwards from the attachment point.	Slope
Sidewalk Pavement Width	Width of sidewalk pavement	Numeric (ft)
Sidewalk Pavement % Slope	% slope of the sidewalk. Positive slopes are upwards from the attachment point.	Slope
Outside Terrace Width	Width of outside terrace	Numeric (ft)
Outside Terrace % Slope	% slope of the inside terrace. Positive slopes are upwards from the attachment point.	Slope
Sidewalk Pavement Depth From Finished Grade	Sidewalk Pavement Depth from finish grade.	Numeric (ft)
Subgrade Depth From Finished Grade	Subgrade Depth from finish grade.	Numeric (ft)

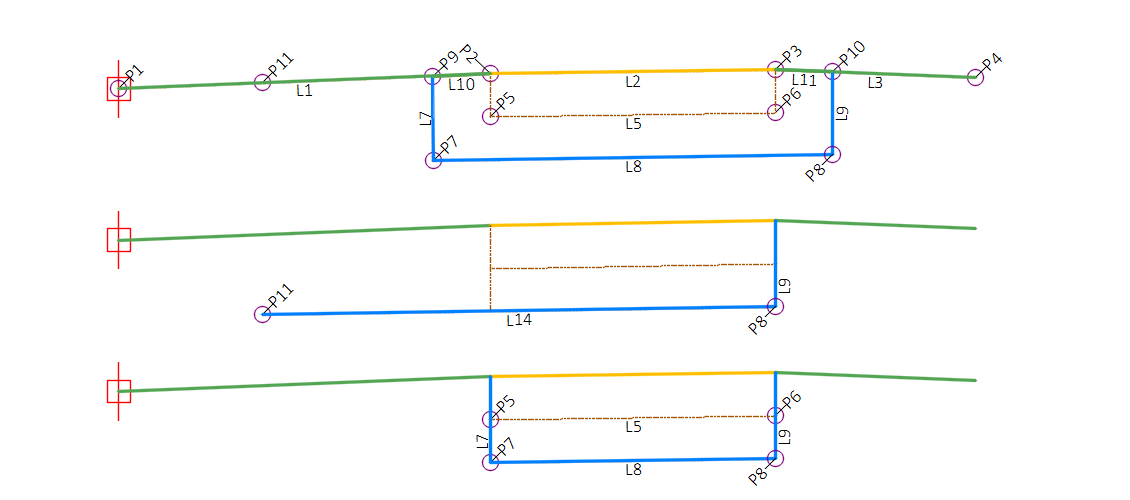

Point Codes

Link Codes

Shape Codes

Point/Link/Shape	Codes	Description
P1	Uncoded	Attachment point
P2	Sidewalk_In_Top	Inside sidewalk on finish grade
P3	Sidewalk_Out_Top	Outside sidewalk on finish grade
P4	Out_Datum	Outside terrace on finish grade
P5	ISE_Base	Inside sidewalk edge - base
P6	OSE_Base	Outside sidewalk edge - base
P7	ISE_Datum	Inside sidewalk edge - datum
P8	OSE_Datum	Outside sidewalk edge - datum
P9	Sidewalk_In_Datum	Subgrade inside terrace - datum
P10	Sidewalk_Out_Datum	Subgrade outside terrace - datum
P11	ETW_Datum_CG	Optional connect point - datum
L1	Top,Datum,SdwlkTrcIn,TOPDATUM	Inside terrace top
L2	Top,Sidewalk,Sdwlk	Sidewalk top
L3	Top,Datum,SdwlkTrcOut,TOPDATUM	Outside terrace top
L4	Base	Top of base
L5	Base	Top of base
L6	Base	Top of base
L7	Datum	Bottom of base
L8	Datum	Bottom of base
L9	Datum	Bottom of base
L10	Top,ShldIn,TOPDATUM	Inside shoulder top
L11	Top,ShldOut,TOPDATUM	Outside shoulder top
L12	Datum	Bottom of base
L13	Datum	Bottom of base
S1	NoDisplay	Sidewalk pavement
S2	Subbase	Sidewalk subbase
