Reports - Alignment Description
Last updated: 2021-06-29
Overview
This report creates a .pdf, .txt, or .xlsx file containing a geometric description of one or more alignments. The report creates one file for each alignment with the file name format: <AlignmentName>-AliDesc.
Usage
WisDOT Survey tab > Survey panel > Reports menu > Alignment Description
The report can also be accessed from the command line: DOTREPORTALIGNMENTDESCRIPTION
-

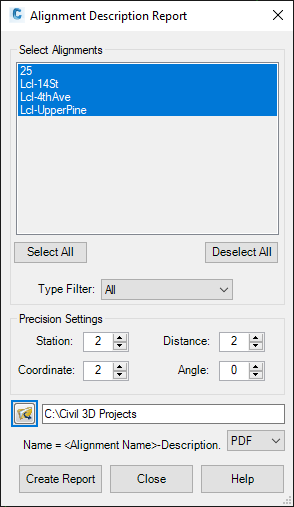

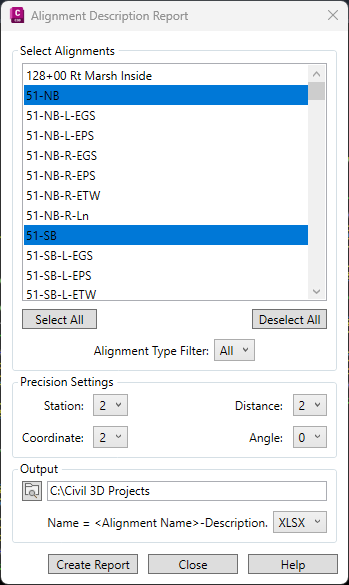

In the Alignment Description Report dialog, select alignment(s) from the listbox. Use Shift or Ctrl buttons to select multiple alignments.
-
The Type Filter menu can be used to filter the alignment list by type.
-
-
Set the precision settings. (Select the number of places to the right of the decimal point.)
-
Click the folder icon to open the Save File As.. dialog.
-
Use the file extension menu to select PDF, TXT, or XLSX output file format.
-
Create Report
Sample report
