SRV to PNT/FLT

Last updated: 2025-04-08

Overview

An SRV file is a file format used by CAiCE for importing/exporting points and chains. The SRV to PNT/FLT app will convert a SRV (.srv) file to PNT (.pnt) and FLT (.flt) files. The PNT and FLT files can then be imported into Civil 3D and added to a surface definition.

Usage

WisDOT Survey tab > Mapping panel > SRV to PNT/FLT

The SRV to PNT/FLT tool can also be accessed from the command line: DOTCONVERTSRVTOPNTFLT.

1. Use the browse button to select a SRV file.

2. OK

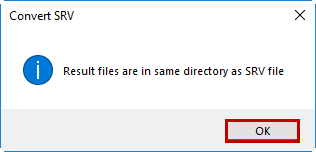

Info: The PNT and FLT files will be in the same directory as the original SRV file.

1. OK to dismiss.
