Unit Status bar: On/Off

Last updated: 2025-04-28

Overview

The Units Status Bar provides the current information for Dwg Units, Insertion Units, Conversion Units, and current OSnapZ setting for the current drawing.

Using Units Status bar

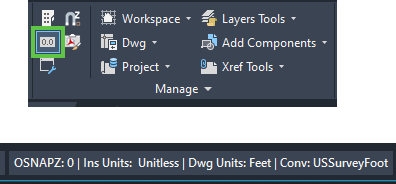

WisDOT [***] tab > Manage > Units status bar

1. The button will toggle the Units Status Bar on and off.
