Workspace - OsnapZ: OFF/ON

Last updated: 2021-06-29

Overview

This tool will toggle the value of the Osnapz variable. This controls whether object snaps are automatically projected onto a plane parallel to the XY plane of the current UCS at the current elevation.

Using Toggle OsnapZ

WisDOT [***] tab > Support panel > Toggle OsnapZ

The tool palette can also be toggled from the command line. Use WIOSNAPZ

Value	Description
0	Osnap uses the Z-value of the specified point
1	Osnap substitutes the Z-value of the specified point with the elevation (ELEV) set for the current UCS

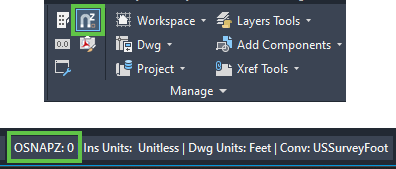

The value for this toggle is shown in the status bar as OSNAPZ:0 or OSNAPZ:1.
