Assembly Label Sizes

Last updated: 2025-04-23

Overview

For assemblies and corridors utilizing the WisDOT code set styles, the text labels (when viewed in assembly layout and corridor section editor) default to one single size for all annotation scales. These tools are intended to adjust the size of the text labels for assemblies in assembly layout and corridor section editor while working in corridor files.

This command does not affect the WisDOT code set styles that start with "XS", which are used in cross section sheets.

Usage

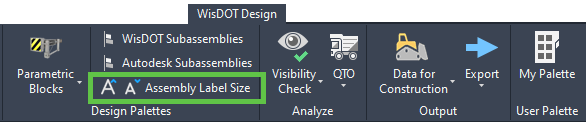

WisDOT Design tab > Design Palettes panel > Assembly Label Sizes

The tool can also be opened at the command line: DOTINCREASEASSEMBLYLABELSIZES & DOTDECREASEASSEMBLYLABELSIZES

  1. Click the panel buttons to increase or decrease text sizes. The minimum size is 0.1.
  2. Stop to select a size.
