Inquiry - Total Length of Alignments

Last updated: 2021-06-29

Overview

This tool will give the total length of all alignments in the drawing or select individual alignments to get a sum of the selected alignment lengths.

Using Total Length of Alignment

WisDOT Design tab > Analyze panel > Inquiry dropdown > Total Length of Alignments

The Total Length of Alignments macro can also be accessed from the command line: ATL.

Calculate the Total Length of All Alignments in the Drawing

  1. To select Alignments press [Select]: or to select All press <Enter> Enter
  2. The total length is echoed in the command line.

Calculate the Total Length of Selected Alignments in the Drawing

  1. To select Alignments press [Select]: or to select All press <Enter> S Enter
  2. Select alignments in modelspace > Enter

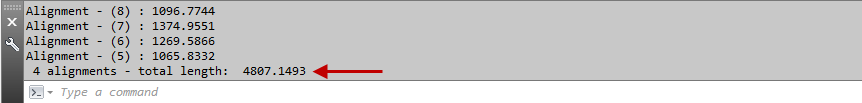

  3. The total length of the selected alignments is echoed in the command line.
