SRV to PNT/FLT

Last updated: 2020-06-16

Overview

An SRV file is a file format used by CAiCE for importing/exporting points and chains. The SRV to PNT/FLT app will convert a SRV (.srv) file to PNT (.pnt) and FLT (.flt) files. The PNT and FLT files can then be imported into Civil 3D and added to a surface definition.

Using SRV to PNT/FLT

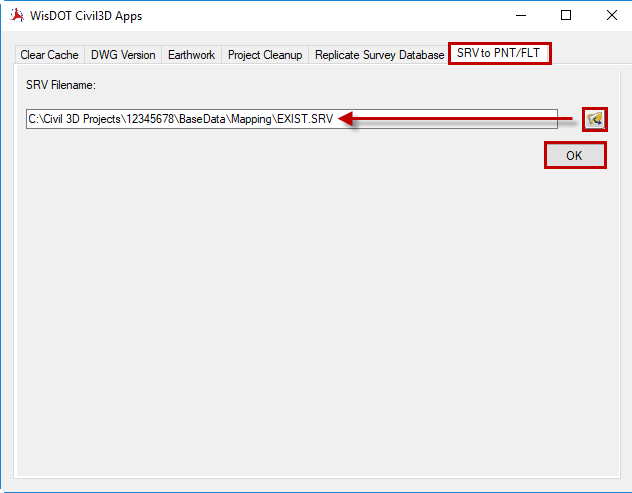

WisDOT Civil 3D Apps desktop shortcut > SRV to PNT/FLT tab

1. Double-click the WisDOT Civil 3D Apps shortcut on the Desktop.

2. Select the SRV to PNT/FLT tab.

3. Use the browse button to select a SRV file.

4. Click OK.

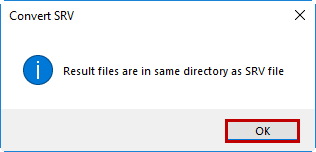

Info: The PNT and FLT files will be in the same directory as the original SRV file.

5. Click OK to dismiss.
