DWG Version

Last updated: 2020-06-16

Overview

Use the DWG Version app to query .dwg file version information. This app will retrieve the following:

  • Filepath and filename
  • AutoCAD DWG format version
  • AutoCAD application version last saved in

The app will process a single file, multiple files, or entire folders and subfolders as input. The results appear on screen and can also be exported as a .csv list.

Using DWG Version

WisDOT Civil 3D Apps desktop shortcut > DWG Version tab

1. Double-click the WisDOT Civil 3D Apps shortcut on the Desktop.

2. Select the DWG Version tab.

There are two methods to add files.

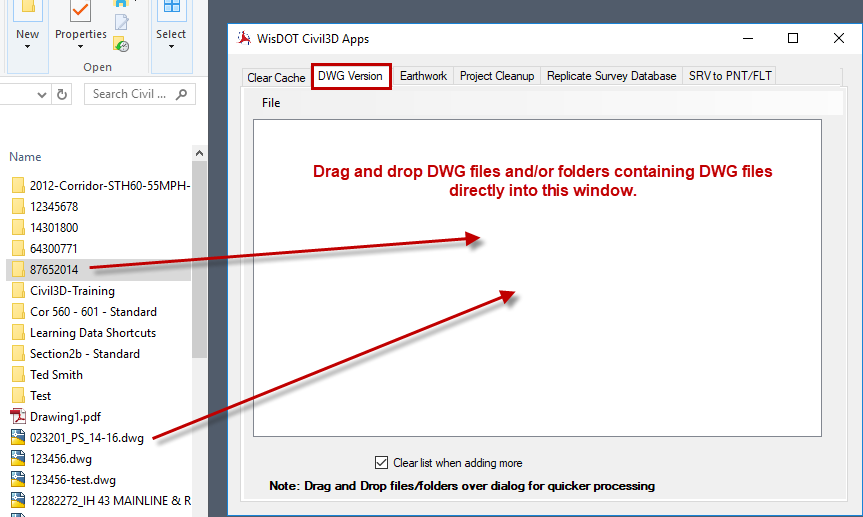

  • Method 1: Drag and drop files and folders from Windows Explorer directly into the DWG Version window.

  • Method 2: Use the File menu to open a file or folder

Tip: Method 1 results in quicker processing. Method 2 is handy if you don't have a Windows Explorer window open.

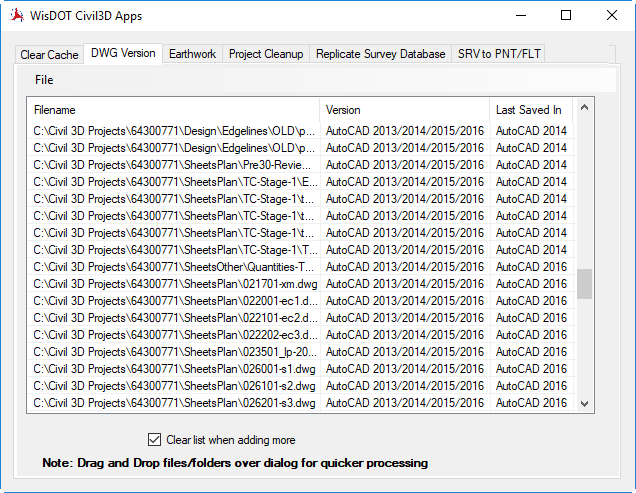

3. Results automatically appear in the application window.

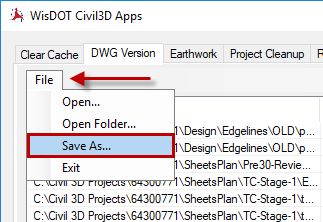

4. To export the results to a .csv file select Save As... from the File menu.
