AutoDesk and WisDOT subassemblies

Last updated: 2026-08-05

Total video time: 02:59

sa-sub-adsk-wisdot-01.mp4 02:59

There are 2 set of subassemblies in the WisDOT template files

Autodesk subassemblies and WisDOT provided subassemblies

To access subassemblies

  1. Ribbon>WisDOT Design tab>Tools panel>Palettes ON/OFF

  2. Ribbon>WisDOT Desgn tab>Assemblies & Subassemblies panel>WisDOT & Civil Imperial

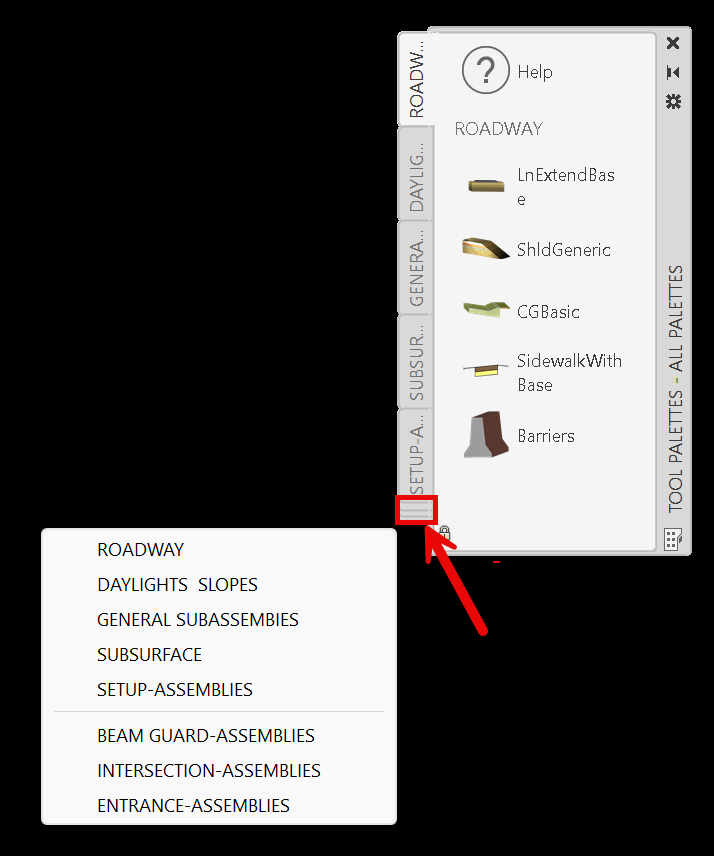

  3. Left Click on the bottom of the tabs on the tool palette

WisDOT Subassemblies are ALL CAPS

Do not mix WisDOT and Autodesk Lanes and Shoulders subassemblies
