Create custom assembly

Last updated: 2020-10-26

Total video time: 04:46

Exercise files: sub-asmbly-data-c3d16.zip

Start with sa-asmbly-07.dwg

sa-asmbly-creat-cstm-01.mp4 04:46

  1. Home tab of ribbon > Create Design panel > Assembly > Create Assembly

  2. Name new assembly CthE-L-ETW-12+50 to 14+25

  3. OK
  4. Left click in model space to place assembly

  5. Select the right side lane subassembly from the assembly above

  6. Contextual ribbon > Modify Subassebly panel > Copy

  7. Left click on assembly marker CthE-L-ETX-12+50 to 14+25
  8. Left click on newly copied subassembly

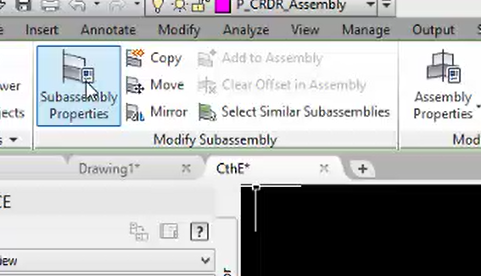

  9. Contextual ribbon > Modify Subassembly panel > Subassemby Properties

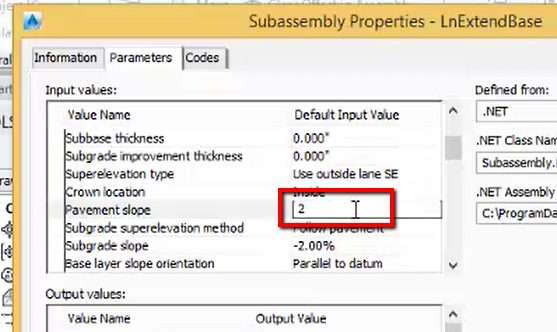

  10. Select the Parameters tab of Subassembly properties dialog box

  11. Change the Pavement slope value to 2

  12. OK
  13. Select the right side lane assembly from the assembly above
  14. Contextual ribbon > Modify Subassembly > Copy

  15. Left click on white marker of lane assembly

  16. Select the right side shoulder and daylight subassemblies from the assembly above

  17. Contextual ribbon > Modify Subassembly panel > Copy

  18. Left click on white marker of newest lane subassembly

  19. Select the left side shoulder and daylight subassmblies from the assembly above

  20. Contextual ribbon > Modify Subassembly panel > Copy

  21. Left Click on assembly marker CthE-L-ETW-12+50 to 14+25

Review subassembly parameters

  1. Left click on subassembly

  2. Contextual ribbon > Modify Subassembly panel > Subassembly Properties

  3. Parameters tab of Subassembly Propeties dialog box

  4. Verify parameters are correct for assembly conditions
  5. OK
