Assembly basics

sa-asmbly-basc-02.mp4 03:39

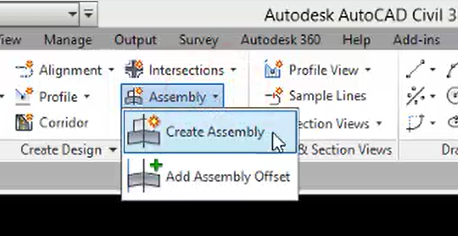

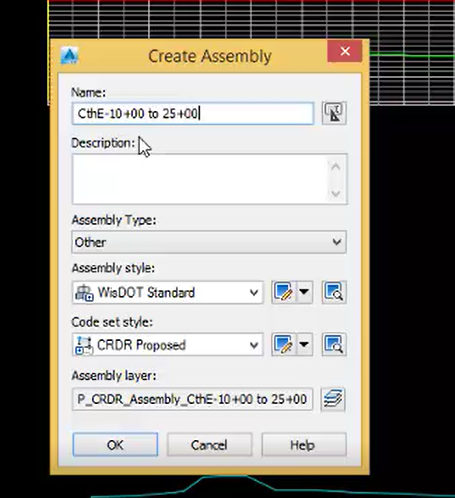

1. Home tab of ribbon > Create Design panel > Assembly drop down > Create Assembly



   1. Name: CthE-10+00 to 25+00
   2. Assembly Type: Other
   3. Assembly Style: WisDOT Standard

   4. Code set style: CRDR Proposed



   5. OK
2. Left Click to place assembly
3. Double check label

sa-asmbly-basc-03.mp4 02:59

Ribbon > WisDOT Design tab > Palettes ON/OFF > WisDOT & Civil Imperial

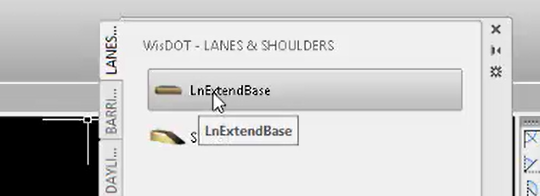

1. LANES tab of TOOL PALETTE

2. Left click LnExtendBase



3. PROPERTIES panel

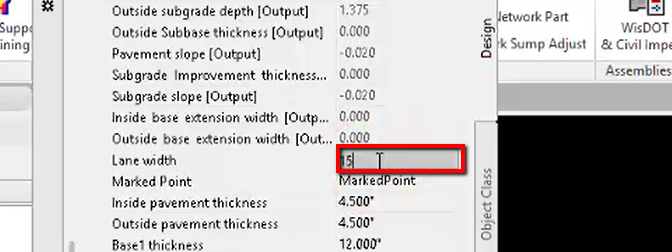

   1. Lane width: 15



4. Left click on Assembly marker

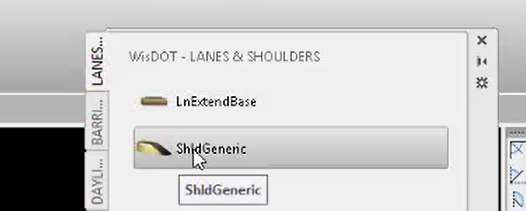

5. Left click on ShldGeneric

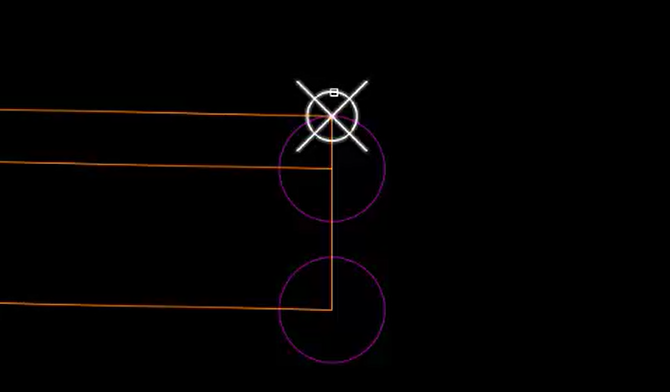

6. Left click on appropriate marker

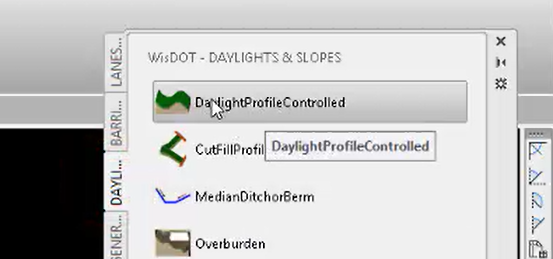

7. Select the DAYLIGHT tab of the tool palette

8. Left Click DaylightProfileControlled subassembly



9. Left click on appropriate marker

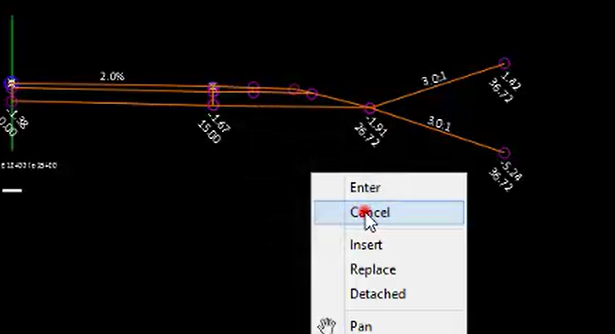

10. Right click and select Cancel



sa-asmbly-basc-04.mp4 01:36

1. Left Click on subassembly

2. Contextual ribbon > Modify Subassembly panel > Subassembly Properties

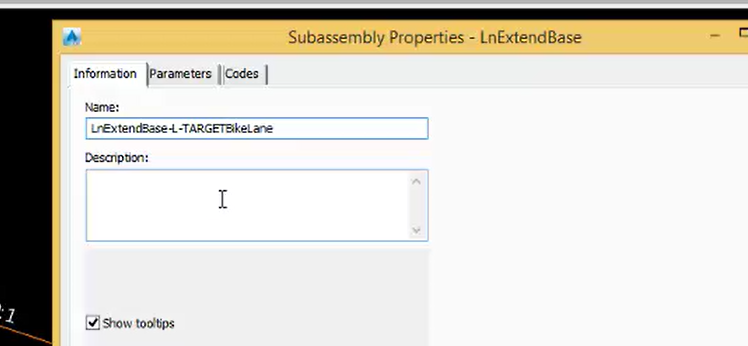

3. Subassembly Properties dialog box > Information tab

4. Name: LnExtendBase-L-TARGETBikeLane



5. OK

sa-asmbly-basc-05.mp4 02:24

1. Left Click on Assembly Marker

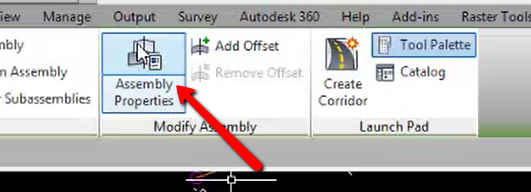

2. Contextual ribbon > Modify assembly > Assembly Properties



3. Assembly Properties dialog box > Construction tab > Item Window

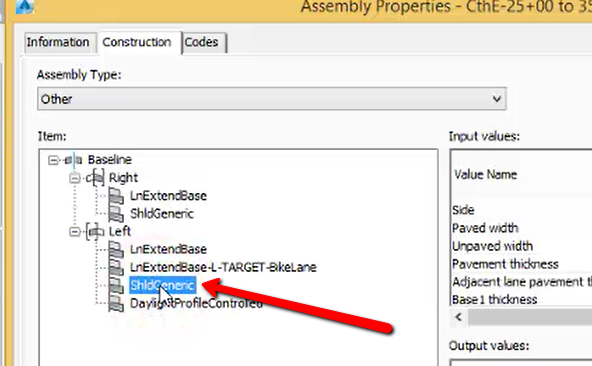

4. Left click to Select Left > ShldGeneric

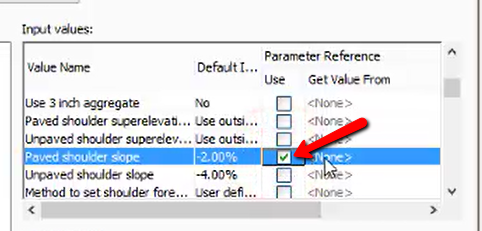

5. In the Input values window, scroll down to Paved shoulder slope

6. Click the Use checkbox

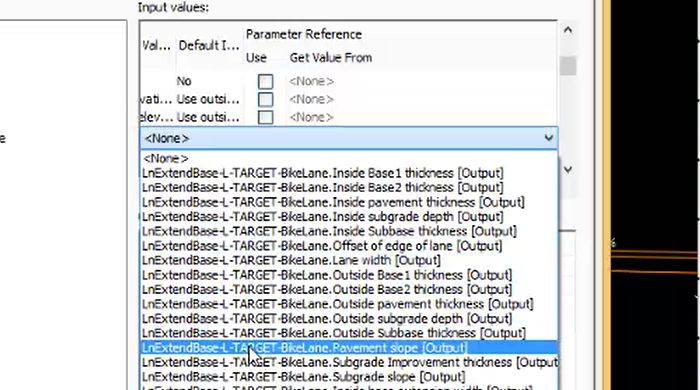

7. In the Get value from field, select LnExtendBase-L-TARGET-BikeLane.Pavement slope [Output]



8. OK
