Rural intersection: alternative layout layers

Total video time: 4:37

Last updated: 2020-10-26

Exercise files: rurl-int-prjct-wid-edglin-ali-end-data-c3d16.zip

Start with: 12345678\Design\aliprofs\AliProf-25.dwg

rurl-int-layout-layr-01.mp4 4:37

Tip: To make it easy to compare different design alternatives create new layers for each of them.

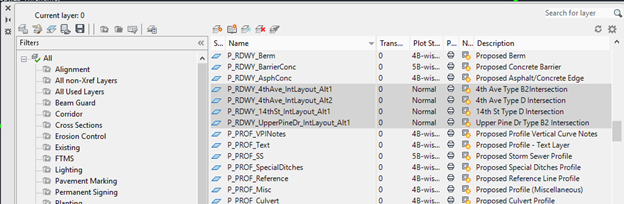

  1. Open layer manager
  2. Create new layer
  3. Begin each new layer name with P_RDWY to utilize the layer filters

  4. Give a description that explains the type of intersection

  5. Double click on the 4thAve_Alt1 to make it the current layer
