Rural intersection: curb return setup and assembly

Total video time: 3:56

Last updated: 2020-10-26

Exercise files: rurl-int-creat-sdrd-setup-crdr-end-data-c3d16.zip

Start with: 12345678\Design\Corridors\Crdr-25-4thAve.dwg

rurl-int-cr-setup-prfl-asmbly-01.mp4 3:56

Comment: Develop the curb return profiles by creating another setup corridor. This setup corridor will give us a range of where we can set our curb return profiles. The range is developed by setting a minimum and maximum slope away from 25 ETW and 4thAve centerline

  1. WisDOT & Civil Imperial palette > Setup Assemblies tab > Setup-Curb-Prof
  2. Place by the other assembly
  3. Set Assembly Properties
    1. Max slope -4%
    2. Min slope -1%
    3. Norm slope -2%

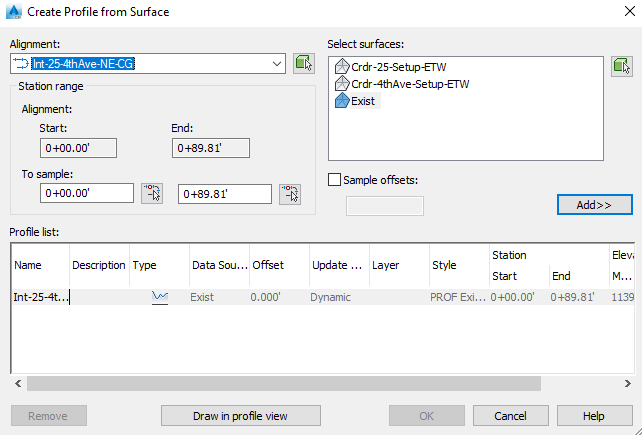

  4. Home tab > Create Design > Profile > Create Surface Profile
  5. Select the Int-25-4thAve-NE-CG alignment > Exist surface > Add > OK

  1. Repeat for the other three corners
