Corridor targets

Targeting allows you to create a more complex design geometry by widening or changing slopes based on targeted objects such as alignments, profiles, feature lines polylines, etc.

It is not recommended to target any xreffed objects.

1. Left click on corridor

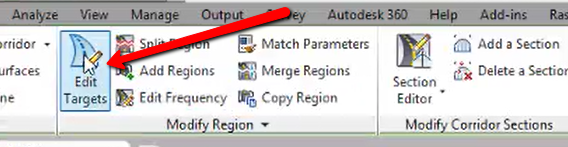

2. Contextual ribbon>Modify Region>Edit Targets



3. Left click inside of region

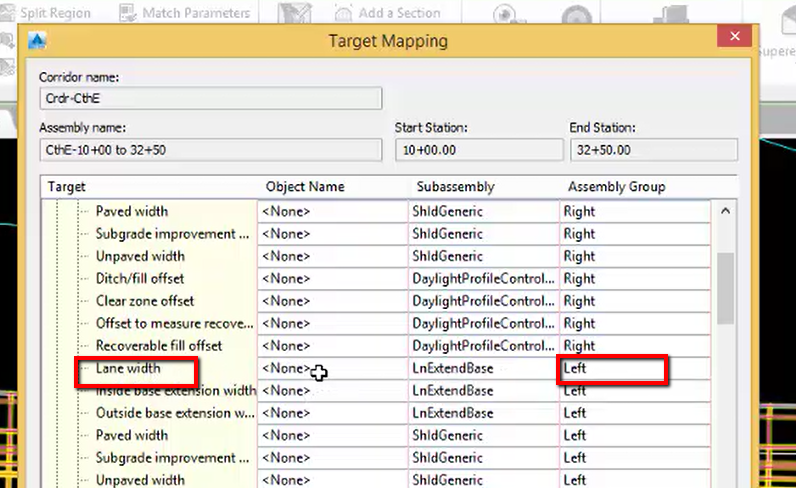

4. In the Target Mapping dialog box, scroll down to the Lane width left



5. Left click in the Object name column

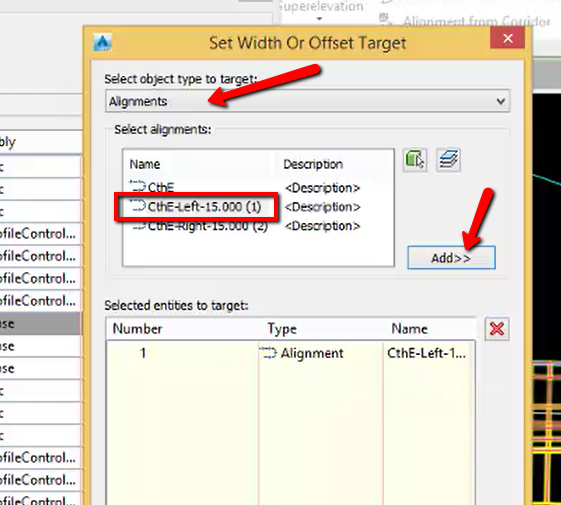

6. In the Set Width Or Offset Target dialog box, select alignments
7. Left click on CthE-Left-15.000 (1)

8. Click Add



9. OK

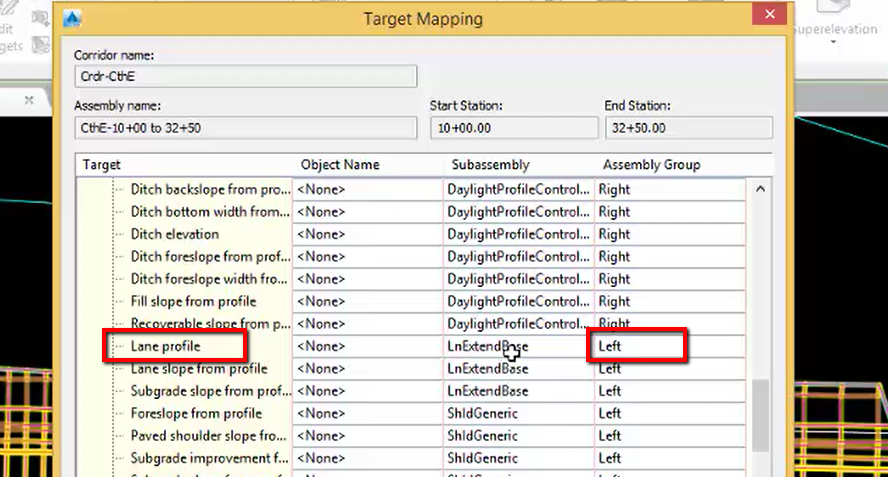

10. Scroll down to Lane profile left



11. Left click in the Object name column

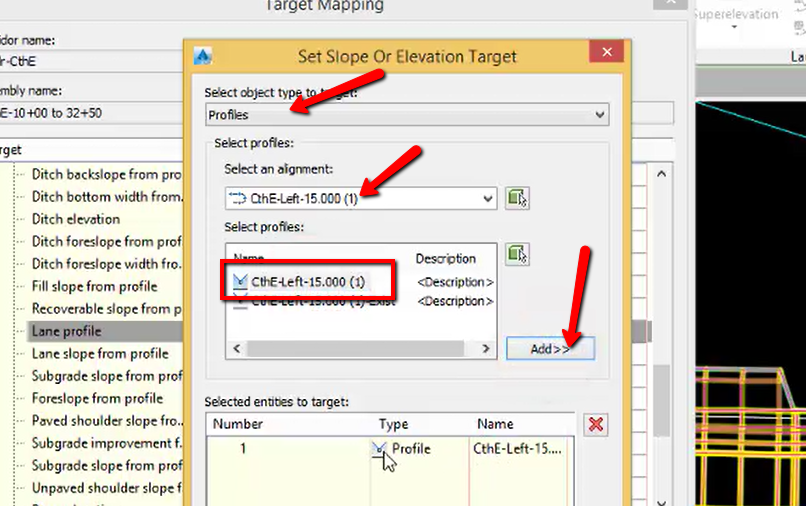

12. In the Set Slope Or Elevation Target, select Profiles
13. Select the CthE-Left-15.000 (1) alignment
14. Select the CthE profile

15. Click Add



16. OK
17. OK
