Corridor issues: waterfalls

Last updated: 2020-10-26

Total video time: 05:04

Exercise files: crdr-data-c3d16.zip

Start with CthE.dwg

crdr-isu-wtrfl-01.mp4 05:04

To check for corridor waterfalls

  1. Left click on corridor
  2. Right click

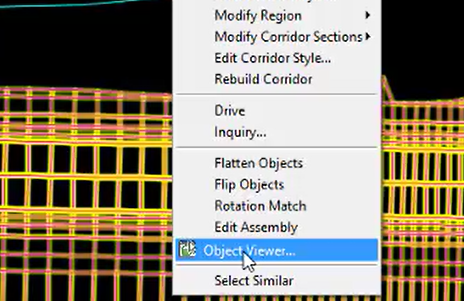

  3. Select Object viewer

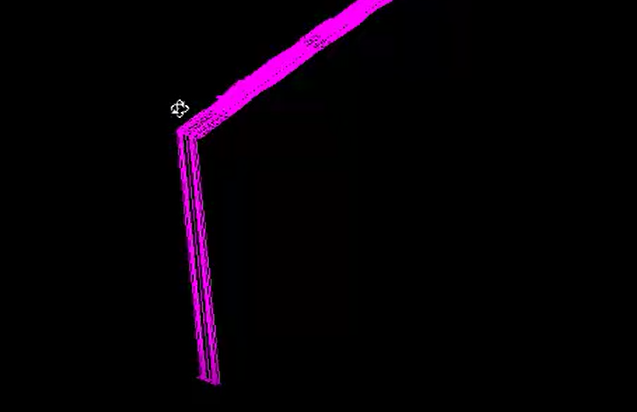

  4. Left click, hold and move your mouse to orbit

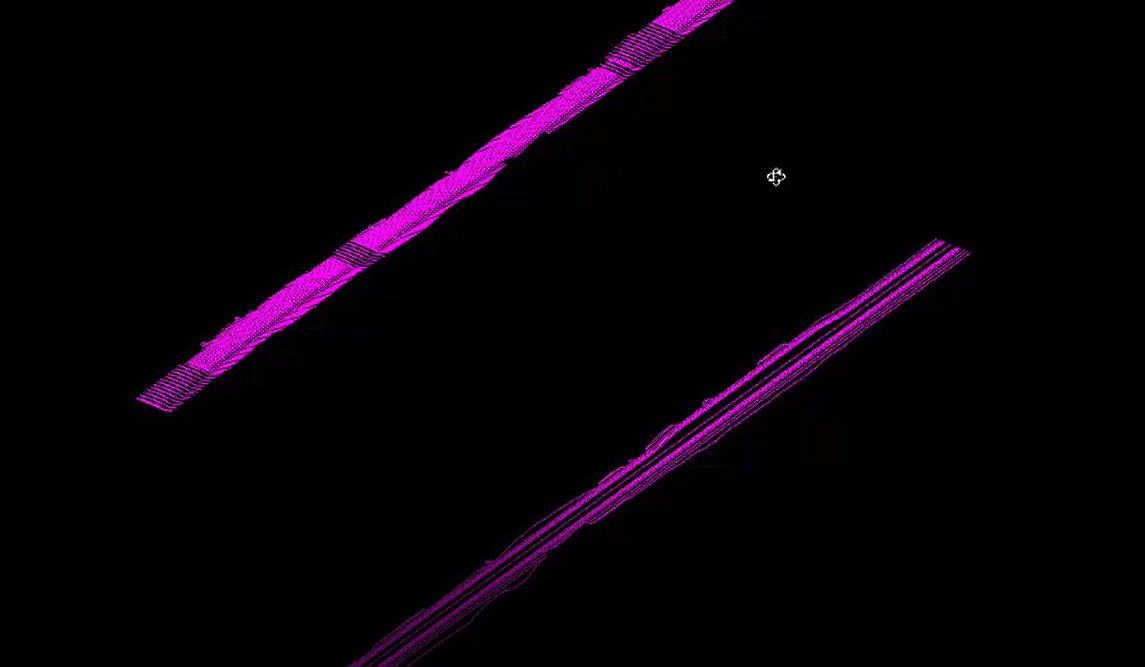

  5. Inspect where waterfall happens

  6. Close object viewer

To fix waterfall

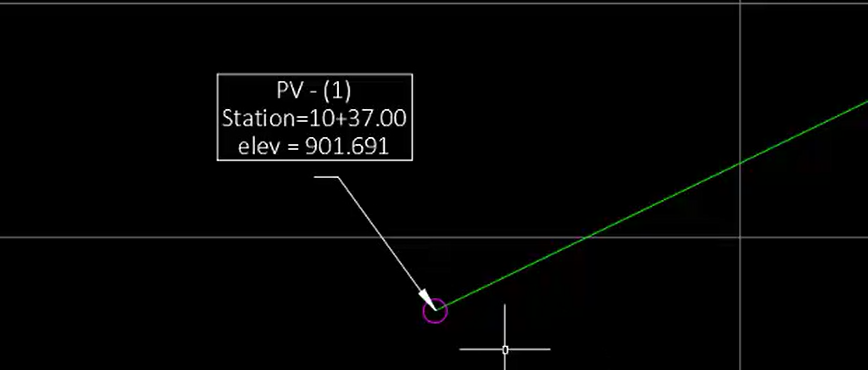

  1. Check design profile start station

  2. Left click on corridor

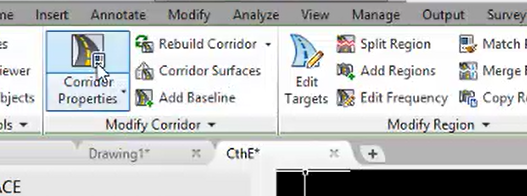

  3. Contextual ribbon>Modify Corridor panel>Corridor Properties

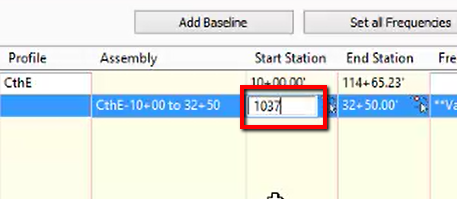

  4. Change corridor start region station value to 1037

  5. OK
  6. Rebuild Corridor

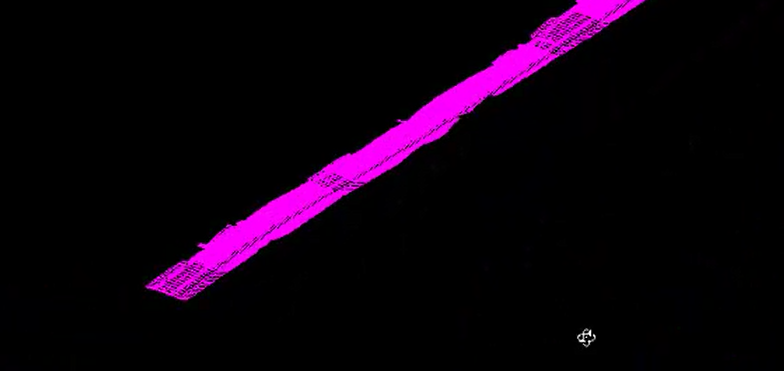

  7. Inspect in object viewer
