Create corridor

Last updated: 2026-01-06

Total video time: 01:51

Exercise files: crdr-data-c3d16.zip

Start with CthE.dwg

crdr-creat-01.mp4 01:51

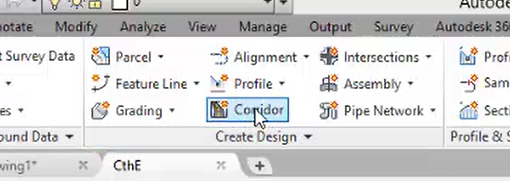

  1. Home tab of ribbon>Create Design panel>Corridor

  2. Name the corridor Crd-CthE
  3. Select Alignment CthE
  4. Select Profile CthE
  5. Select assembly CthE-10+00 to 32+50

  6. Select Target Surface Exist

  7. OK

The Corridor Properties dialog box opens
