TrueView single plot

Last updated: 2020-10-26

Total video time: 3:18

Exercise files: plt-lyout-truvu-sngl-plt-data-C3D16.zip

plt-lyout-truvu-sngl-plt.mp4 3:18
  1. c3d >12345678 > SheetsOther >
  2. Open file Stoneridge Road Aerial.dwg
  3. View panel > middle drop-down > Intersection
  4. Output tab > Plot

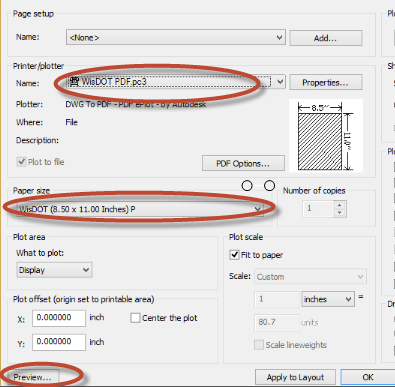

  5. In Printer/plotter area
    1. Name = WisDot PDF.pc3
    2. Paper size = WisDot 8.5"x11"
    3. Preview
    4. Cancel

  1. In the bottom Left-Hand corner select on thePlan 1IN 100 FT sheet layout
  2. Output tab > Plot

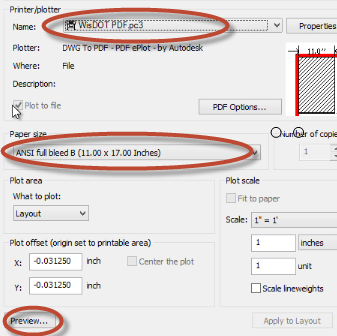

  3. In the Printer/plotter area
    1. Name = WisDot PDF.pc3
    2. Paper size = ANSI full bleed B(11.00x17.00 Inches)
    3. What to Plot = Layout
    4. Preview
    5. OK
    6. c3d>12345678 > SheetsOther
      1. name the file Stoneridge Road Aerial-Plan 1IN 100 FT.pdf
    7. Save

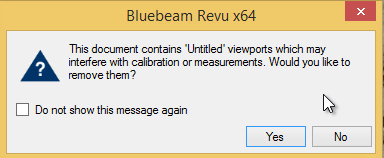

  1. No on the box that appears.
