Quick annotations

Quick annotations start an annotation tool with the correct style and layer for the annotation. For more information about annotating drawings, see the Annotation page.

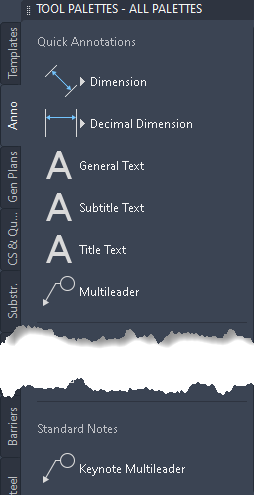

Structures Tool Palette > Anno palette > [Click one of the buttons shown below]

Quick Annotation	Command	Style	Layer
Dimension	Dimension*	Annotative	B_ANNO_DIM
Decimal Dimension	Dimension*	Decimal	B_ANNO_DESIGN_NOTES
General Text	Mtext	Annotative	B_ANNO_TEXT
Subtitle Text	Mtext	Subtitle	B_ANNO_TEXT_TITLE
Title Text	Mtext	Title	B_ANNO_TEXT_TITLE
Multileader	Mleader	Standard	B_ANNO_DIM
Keynote Multileader	Mleader	Keynote	B_ANNO_DIM

Info: The dimension quick annotation buttons have an arrow next to the icon choose the specific dimension tool to use.
